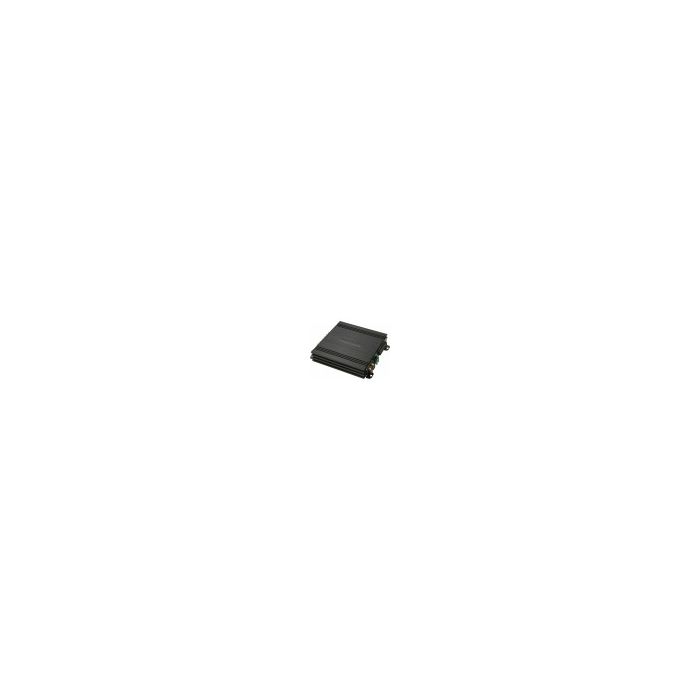

Ground Zero GZDSP 4.80AMP

- 4-channel amplifier with integrated 8-channel signal processor (DSP)
- High efficient 2 Ohm stable class D amplifier
- 6-channel line input (RCA)
- 6-channel high-level input (with auto-on function)
- AUX input (3.5 mm socket)
- TOSLINK input (sampling rate up to 24-bit/96kHz)
- Plug for optional interface (wireless music streaming)
- 4-channel line output (RCA)
- 8-channel signal processor (DSP) - Cirrus Logic single core 32-bit/192 kHz
- Realtime setup of all functions (via PC)
- Simple handling, one-page graphical user interface (Windows compatible)
- Channel separated parametric equalizer (6x 31 band / 2x 11band)
- Channel separated time alignment (0-15 ms / 0-510 cm)
- Adjustable crossover (HPF / LPF / BPF) in the range of 20 Hz to 20 kHz
- Selectable crossover slope (6 to 48 dB/Oct)
- Selectable phase shift for on channel (0˚ or 180°)
- Memory for 10 user presets (selectable with optional remote control)
- Two optional remote-control units available (GZDSP Remote or GZDSP Touch-Remote)
to adjust main and subwoofer level, select the presets and input mode
- LED power and status indicator (protection circuit)
- Power on delay
- High temperature / short circuit / overload protection circuit)

ModelGZDSP 4.80AMP
TypeDSP Verstärker / Amplifier
Output Power @ 4 Ohm (CEA*)4 x 80 W
Output Power @ 2 Ohm (CEA*)4 x 130 W
Output Power @ 1 Ohm (CEA*)-
Bridge mode @ 4 Ohm (CEA* / 10% THD)-
Bridge mode @ 2 Ohm (CEA* / 10% THD)-
Output power linkmode 2 Ohm-
24 Volt Unit-
18 Volt stable-
LowpassDSP
HighpassDSP
BandpassDSP
SubsonicDSP
BassboostDSP
PhaseshiftDSP
Adjustable Q-factor-
Variable Bias Setting-
Bass remoteOptional
High Level in6 Kanal / Channel
Line OutJa / Yes
Illumination-
Dimensions cm / Inch18,5 x 4,2 x 21,5 cm / 7.28“ x 1.77“x 8.46“
